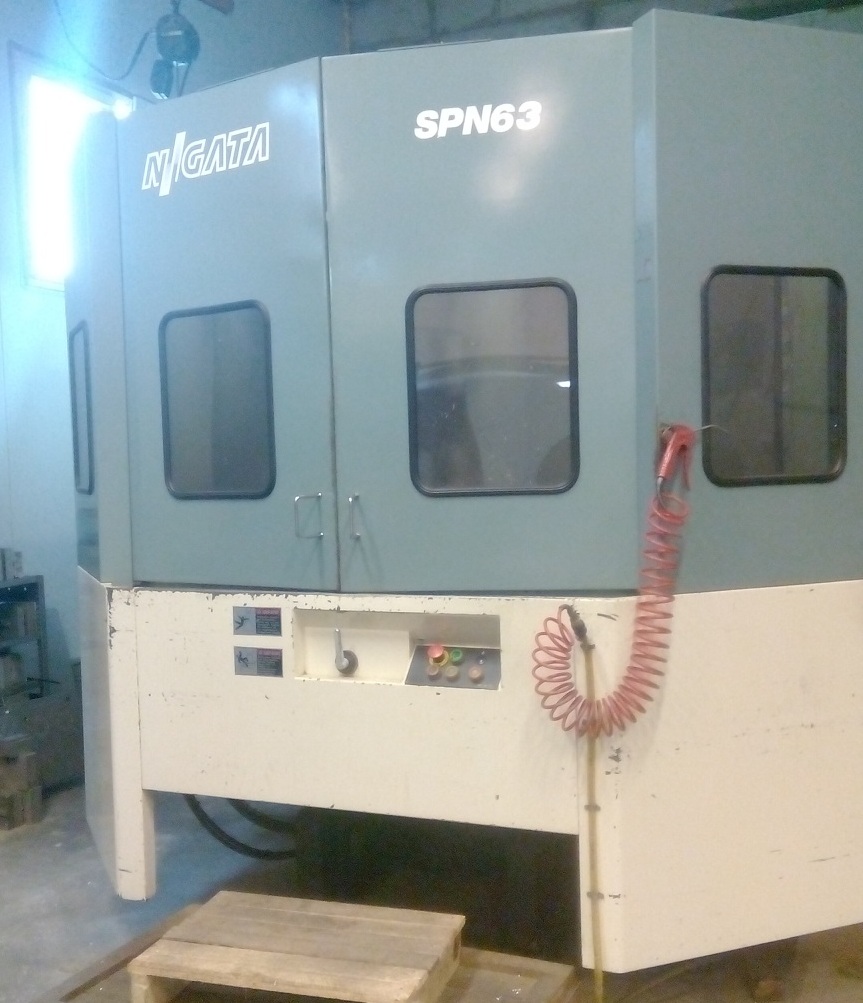

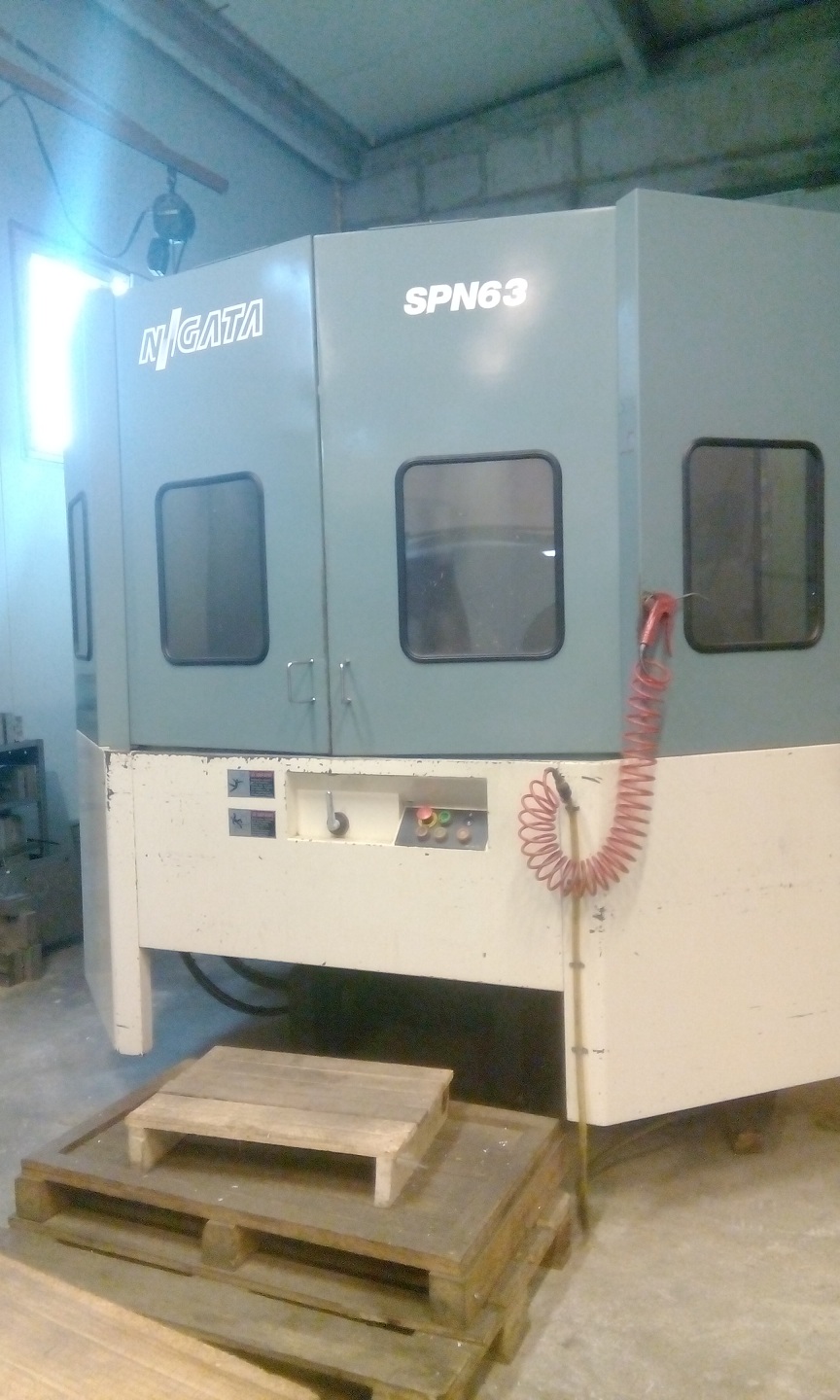

NIIGATA SPN 63

• X - 1000.76mm
• Y - 878.74mm
• Z - 800.01mm
• 4 achse

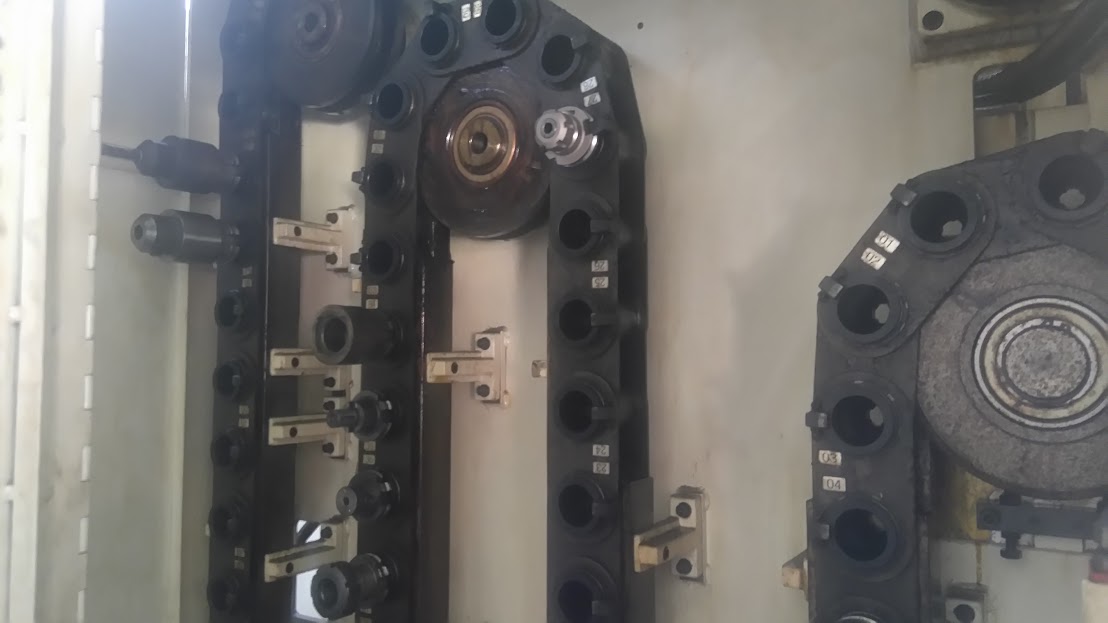

• Werkzeugmagazin: 130 Stk.
• Max Dregzahl: 12000rpm
• Paletteenwechsler: 2 - fach

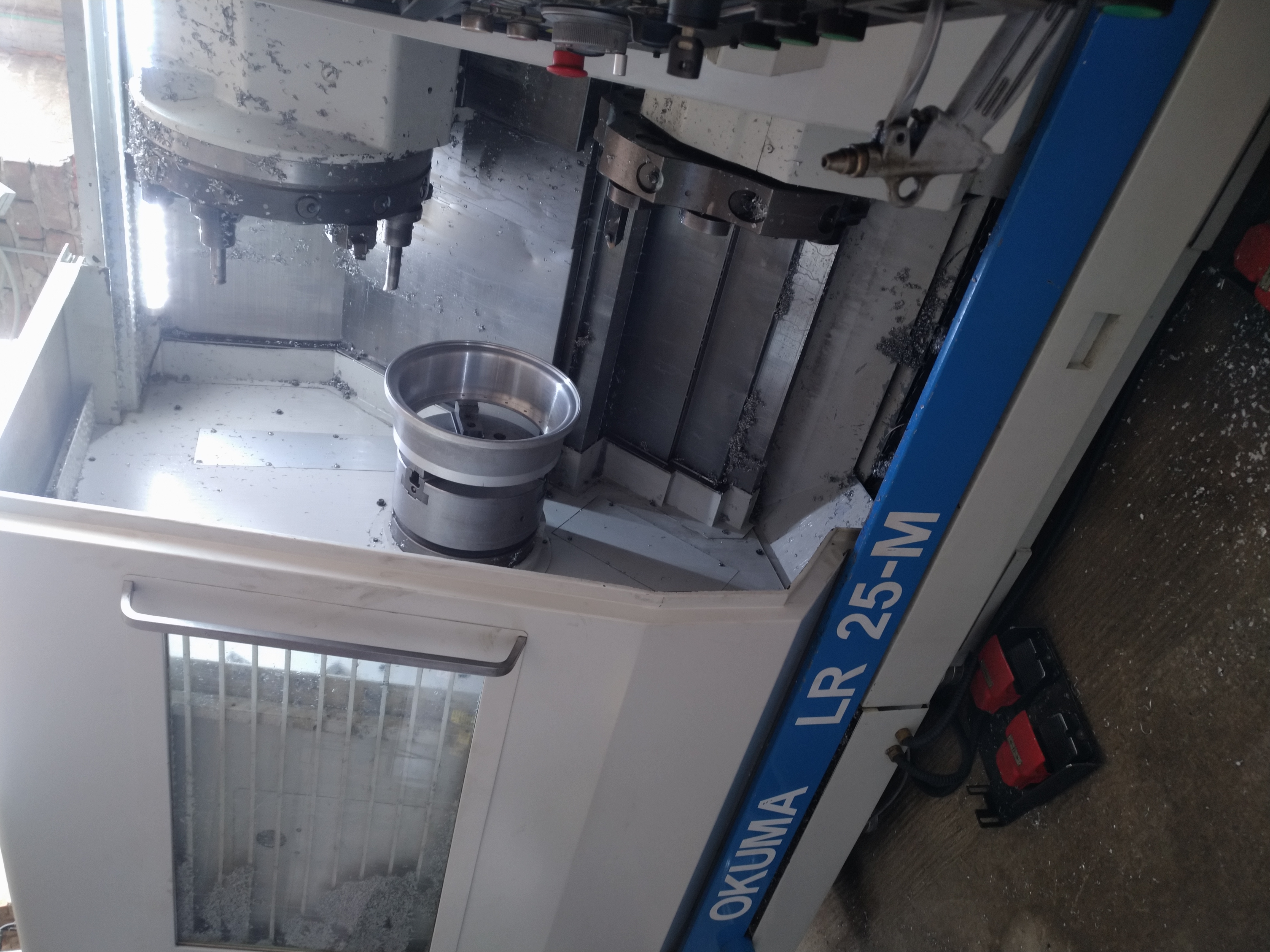

OKUMA LR25-M

OKUMA LR25-M CNC Lathe with C Axis Simulated and Driven Tools

Max. Turning dia o/slide 520 mm dia.
Max. Turning diameter 340 mm dia.
Turning Length 850 mm
Spindle speed Range 40-3500 rpm
Main motor power 30/22 Kw
Turret 1 with 12 Stations
Live Tooling Spindle speeds 100-3000 rpm
Turret 2 with 10 Stations
Accessories:
Tailstock, Chip conveyor.
C Axis - Mainspindle Stroke 0.001 Manuals

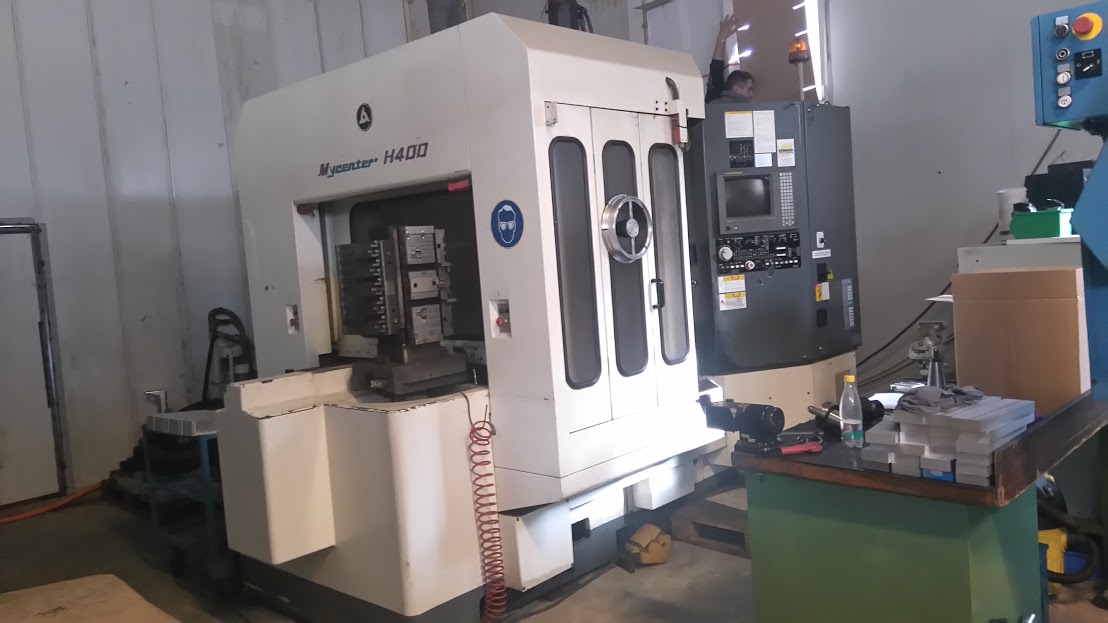

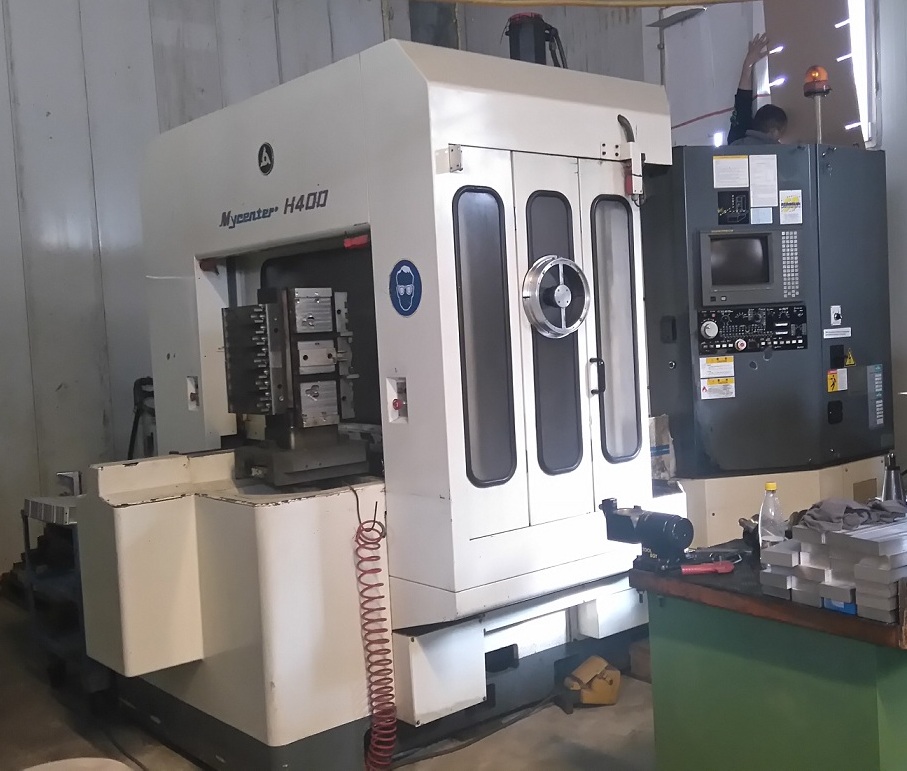

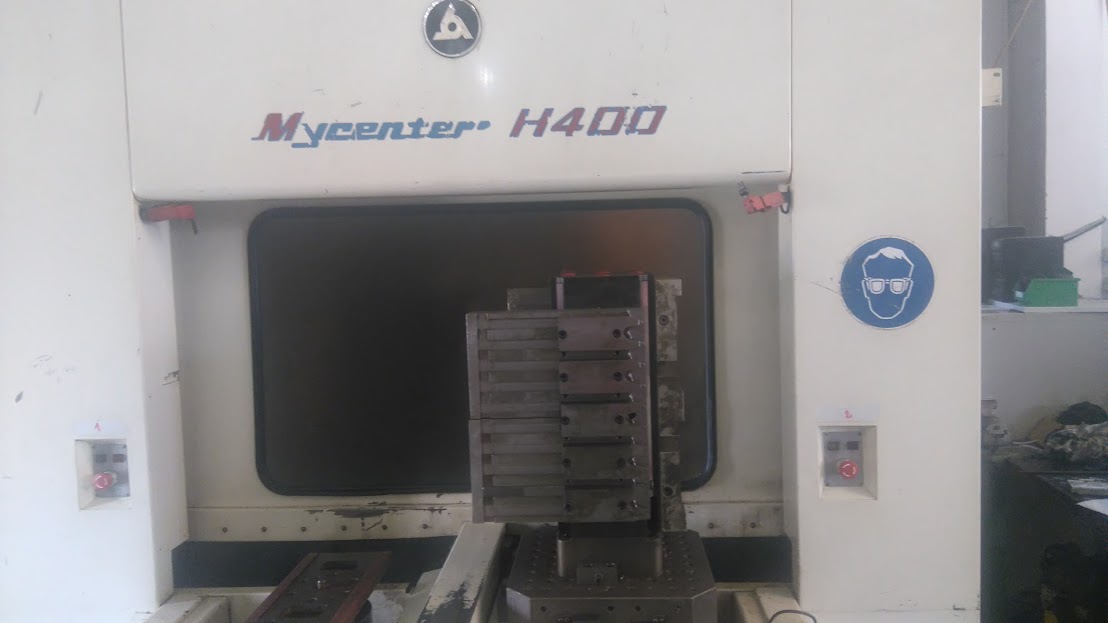

KITAMURA H400

• X - 610mm
• Y - 480mm
• Z - 510mm
• 4 achse
• Werkzeugmagazin: 100 Stk.
• Max Dregzahl: 10000rpm
• Paletteenwechsler: 2 - fach

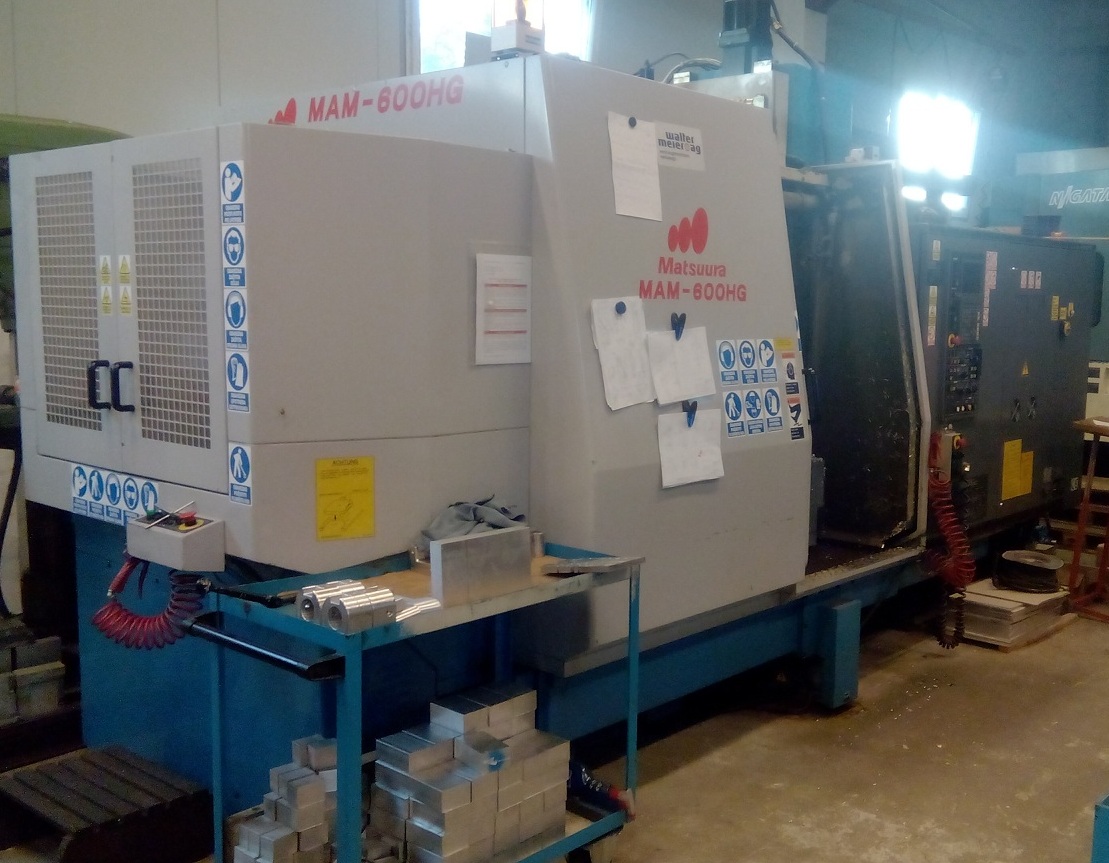

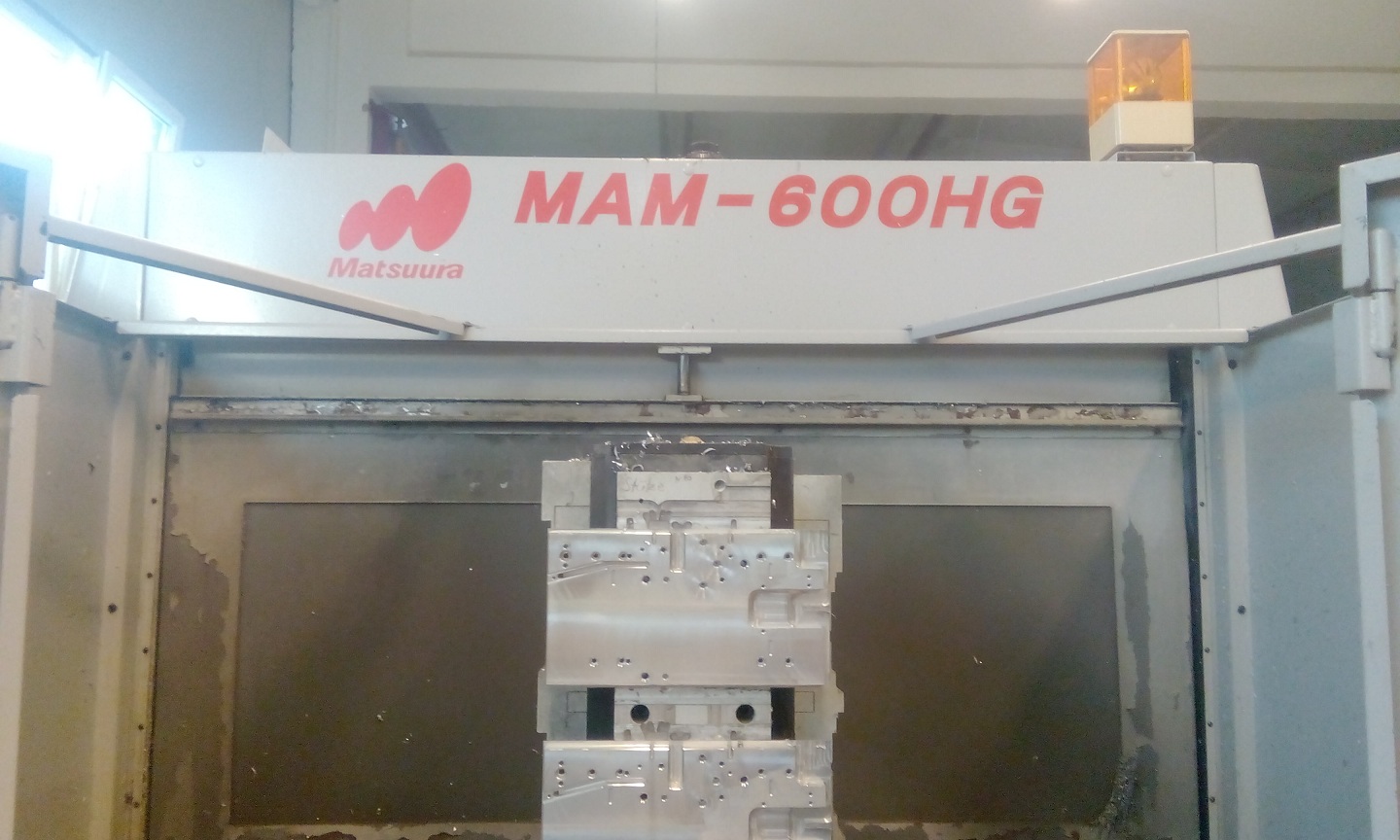

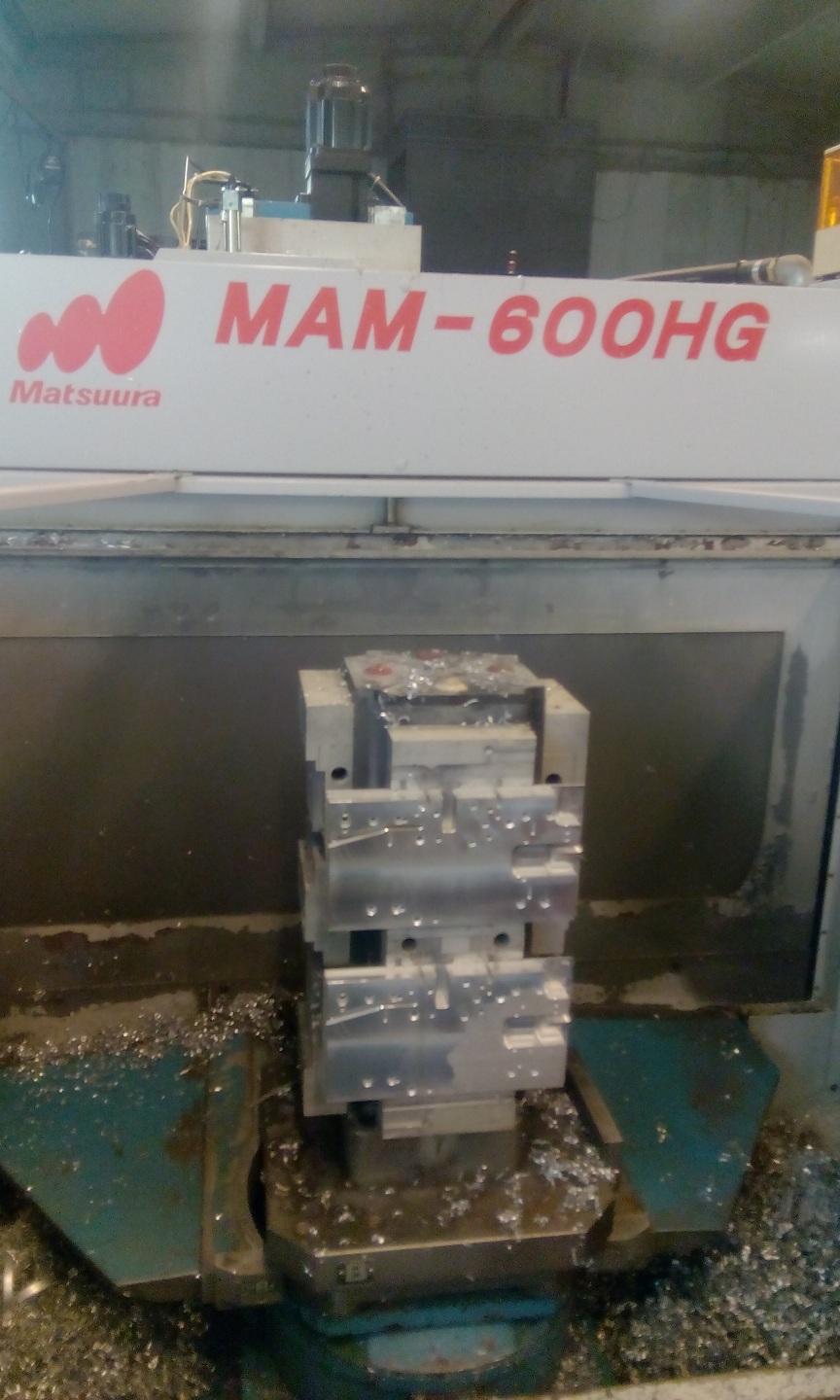

MATSUURA MAM 600 HG/PC2

• X - 600mm
• Y - 600mm
• Z - 625mm
• 4 achse
• Werkzeugmagazin: 120 Stk.
• Max Dregzahl: 10000rpm
• Paletteenwechsler: 2 - fach

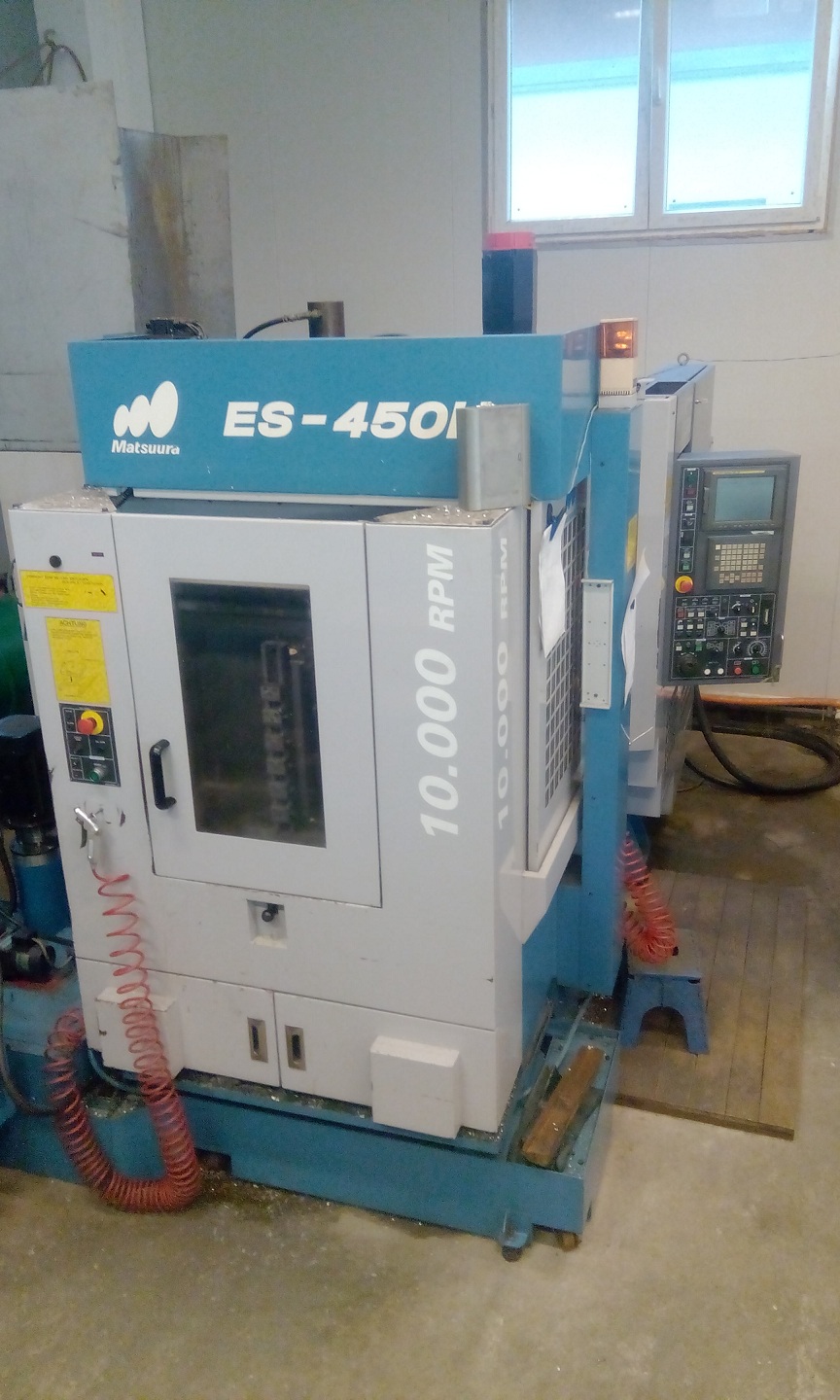

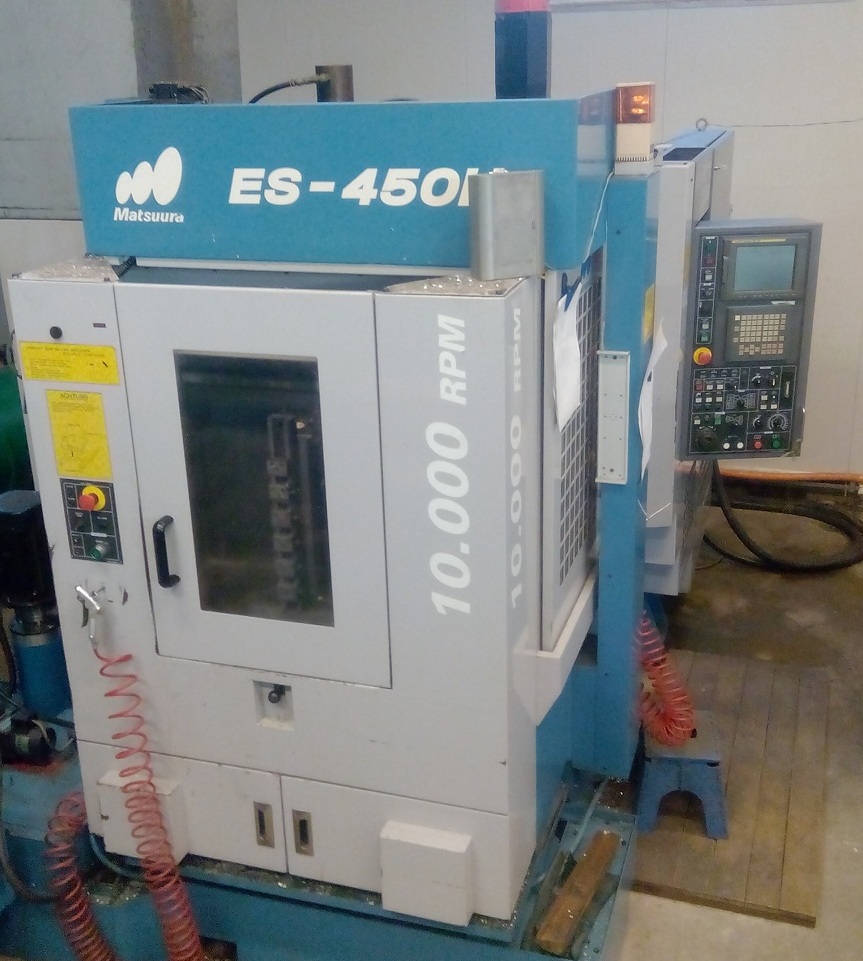

MATSUURA ES 450

• X - 450mm
• Y - 400mm
• Z - 400mm
• 4 achse
• Werkzeugmagazin: 60 Stk.
• Max Dregzahl: 10000rpm
• Paletteenwechsler: 2 - fach

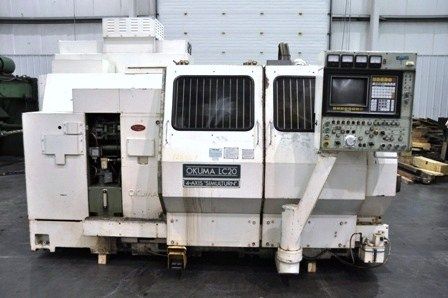

OKUMA LC 20

CNC lathe - Okuma
Type; LC 20-2ST
Year of construction 1985
Control: OSP 5020 L.
Serial number . 2931
with 2 revolvers
Nominal size 300 x 250
NUMBER OF CONTROL AXES 2 x 2
Swing diameter over bed guide 400 mm
Max. Turning diameter: 300 mm
Max. Workpiece length: 250 mm
Spindle diameter: 100 mm on the front bearing
Number of tools: 8
no tailstock

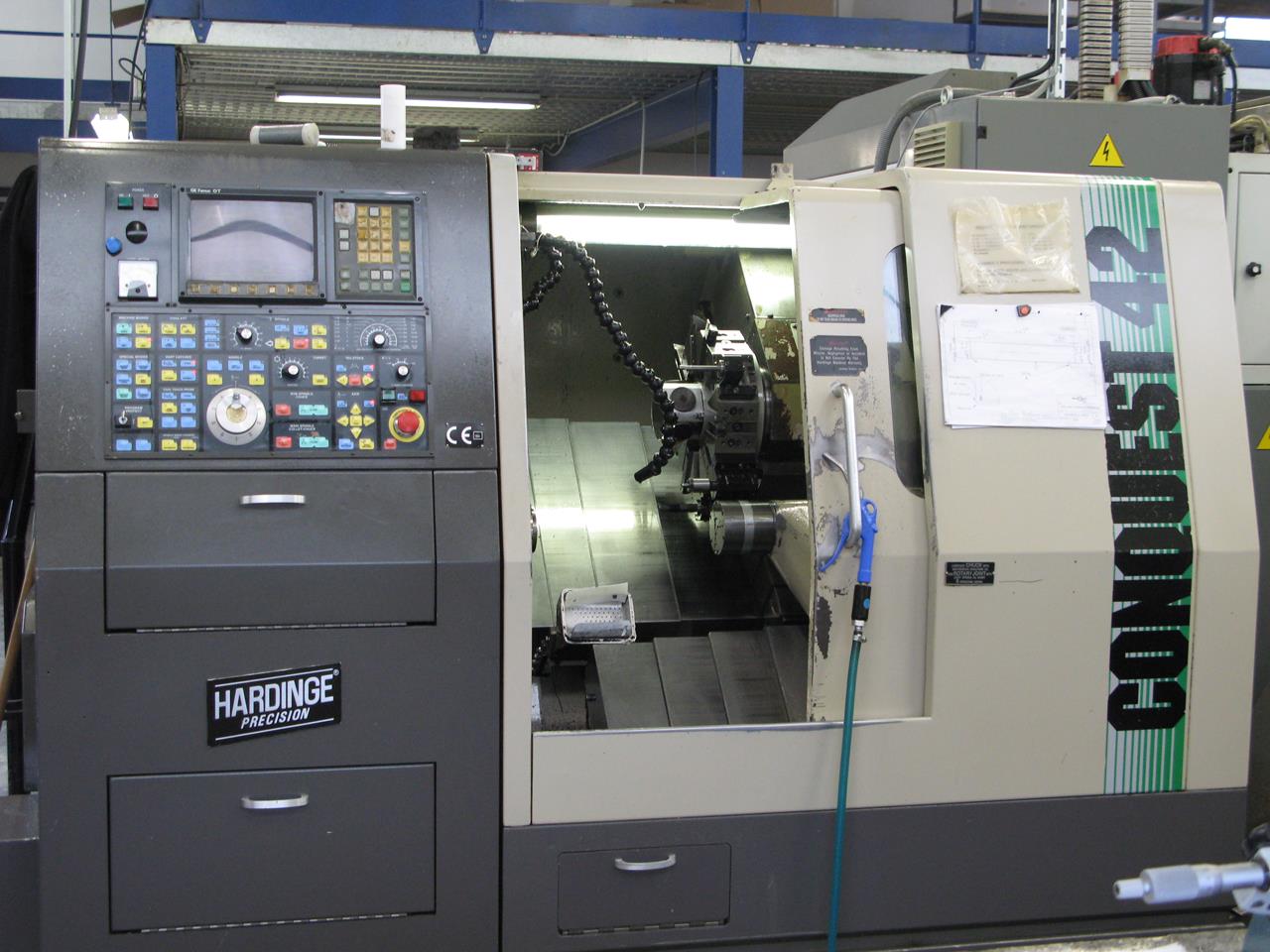

HARDINGE

2014.g.
Specifications
Turning length
Turning Ø 231.0 mm
Ø above the bed 269.0 mm
Ø above transversing slide
Length between centers 350.0 mm
Type of CNC FANUC OT
X-axis 135.0 mm
Z-axis 353.0 mm
Max workpiece weight
Spindle taper A2-5"
Spindle bore
Number of turrets 1.0
Number of tools on turret 12.0
Number of rotating tools 4.0
Turning speed 5000 rpm
Spindle motor power 7.5 kW
Tailstock yes
Bar feeder yes

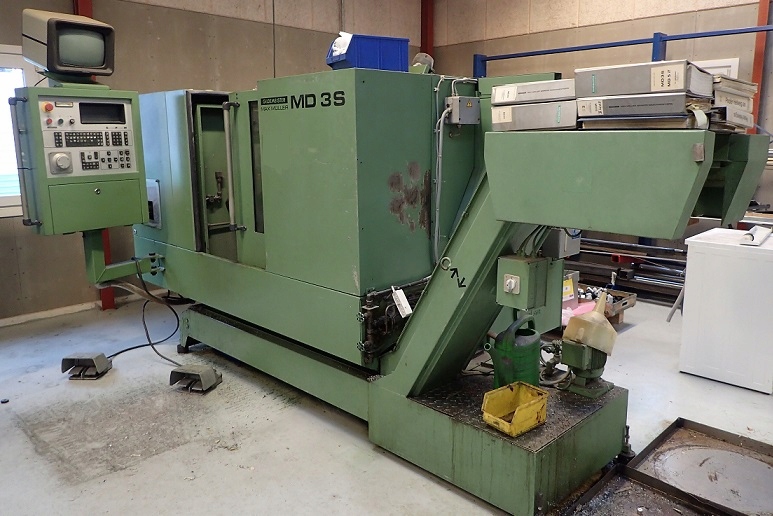

Gildemeister MD 3S

Type of machine: Cycle lathe
# of CNC axis 2
Manufacturer, Model: Gildemeister MD 3S
Control: Eltropilot 10
Made in: Germany
Y.O.M: 1982
Max. diameter over bed: 560 mm
Max. diameter over support: 200 mm
Max. turning length: 600 mm
Equipment: Chip conveyor
Other technical details:
Spindle bore: 73 mm
12 station turret

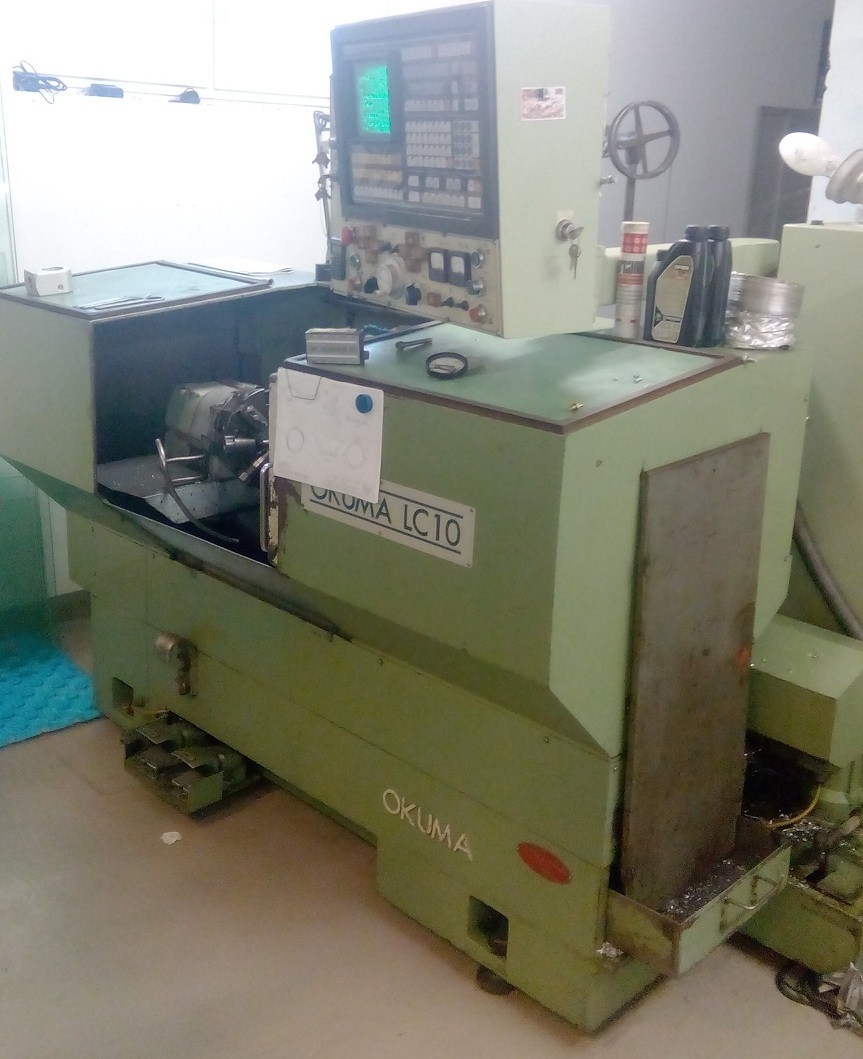

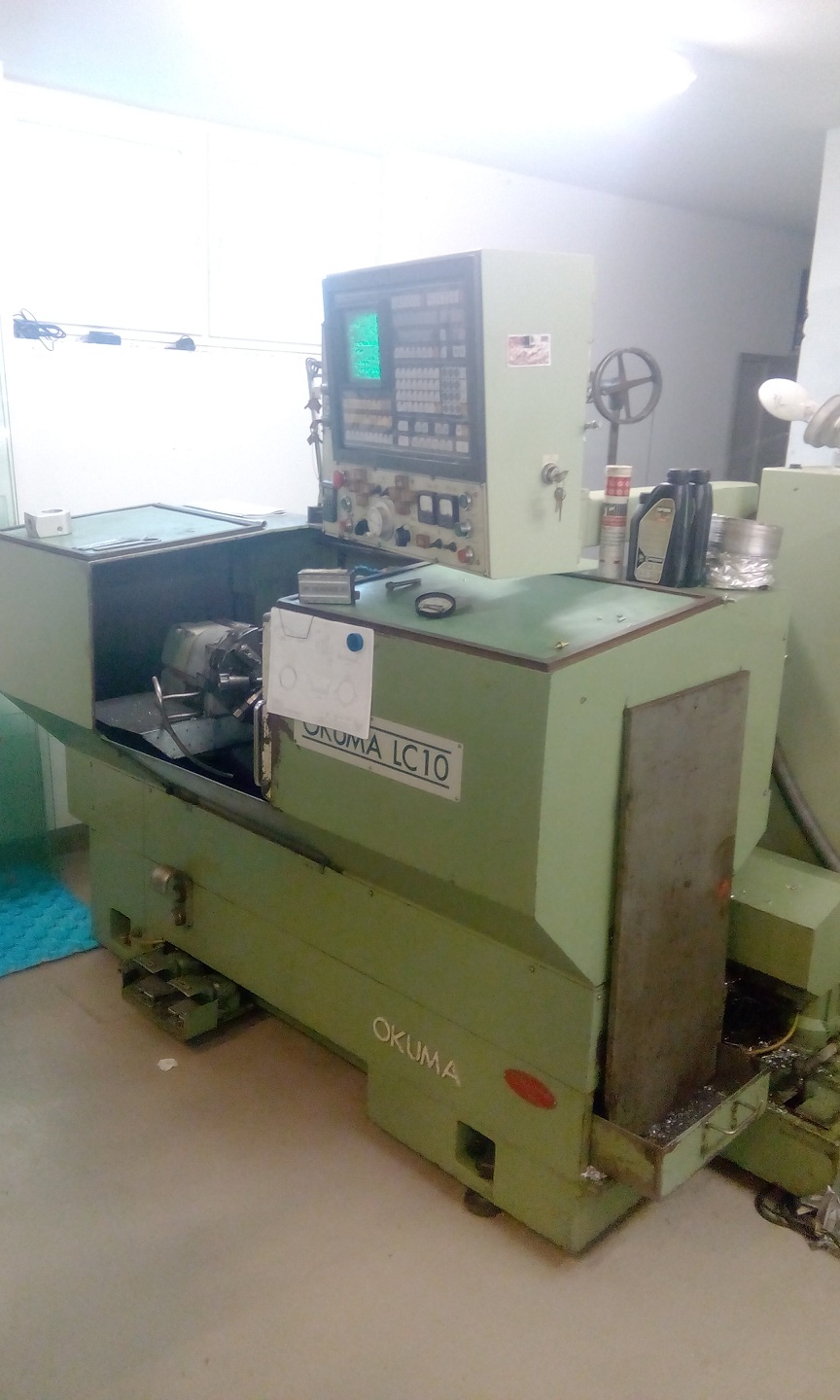

OKUMA LC10 2ST

• Revolver 2
• Werkzeugmagazin: 16 Stk.
• Drehdurchmesser über Bett: 300mm
• Max Dregzahl: 5500rpm
• Stangenlader

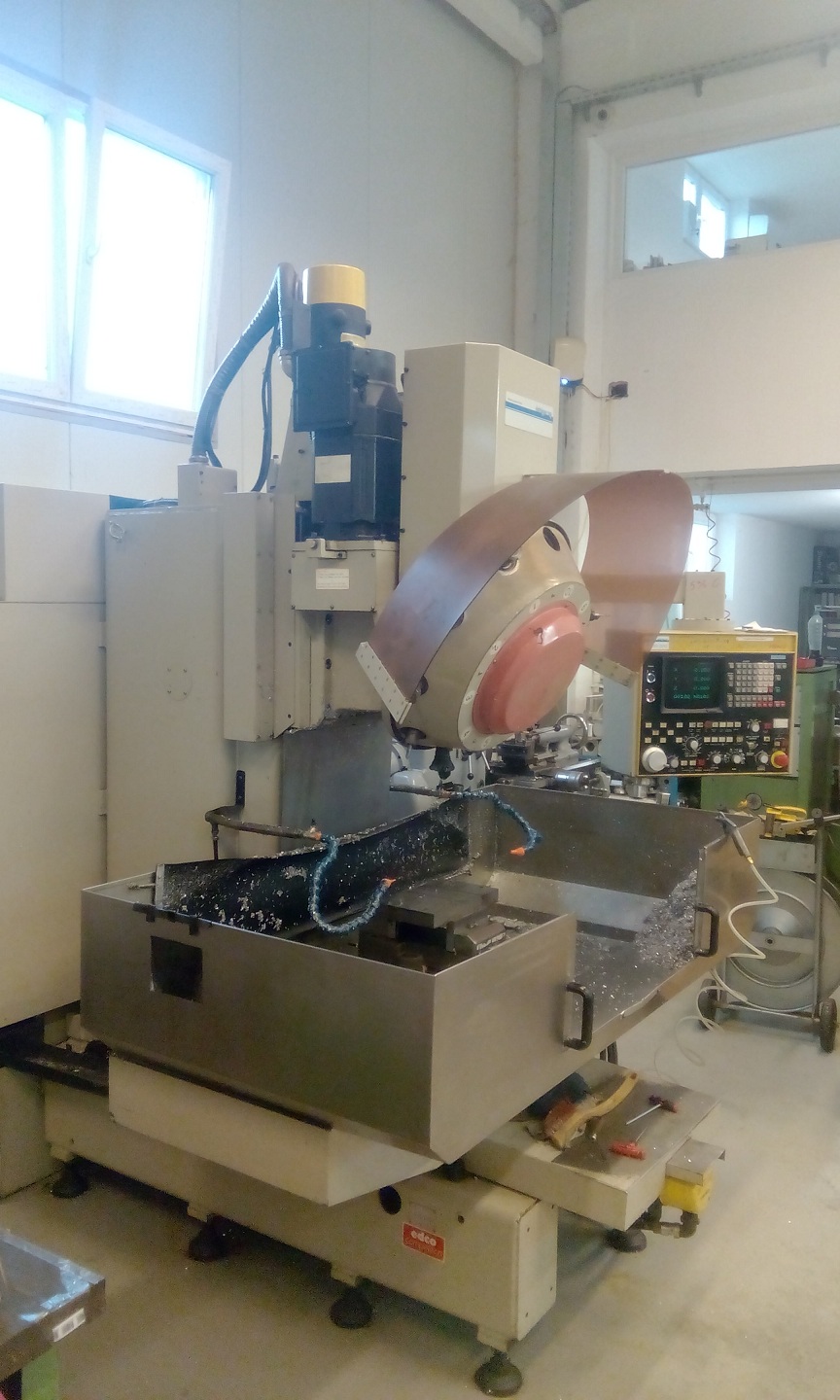

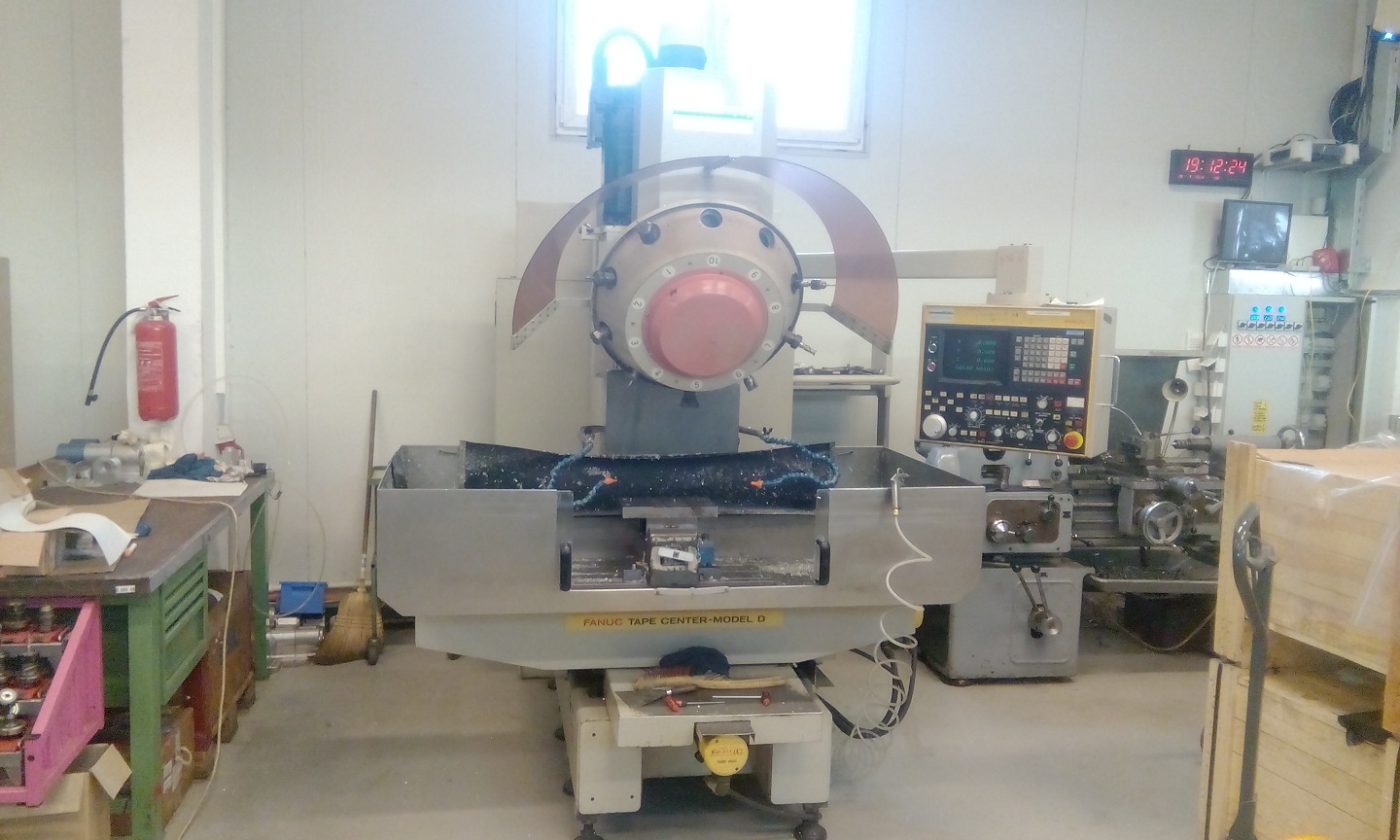

FANUC TAPE CENTER D

• X - 500mm
• Y - 380mm
• Z - 400mm
• Max Dregzahl: 4500rpm

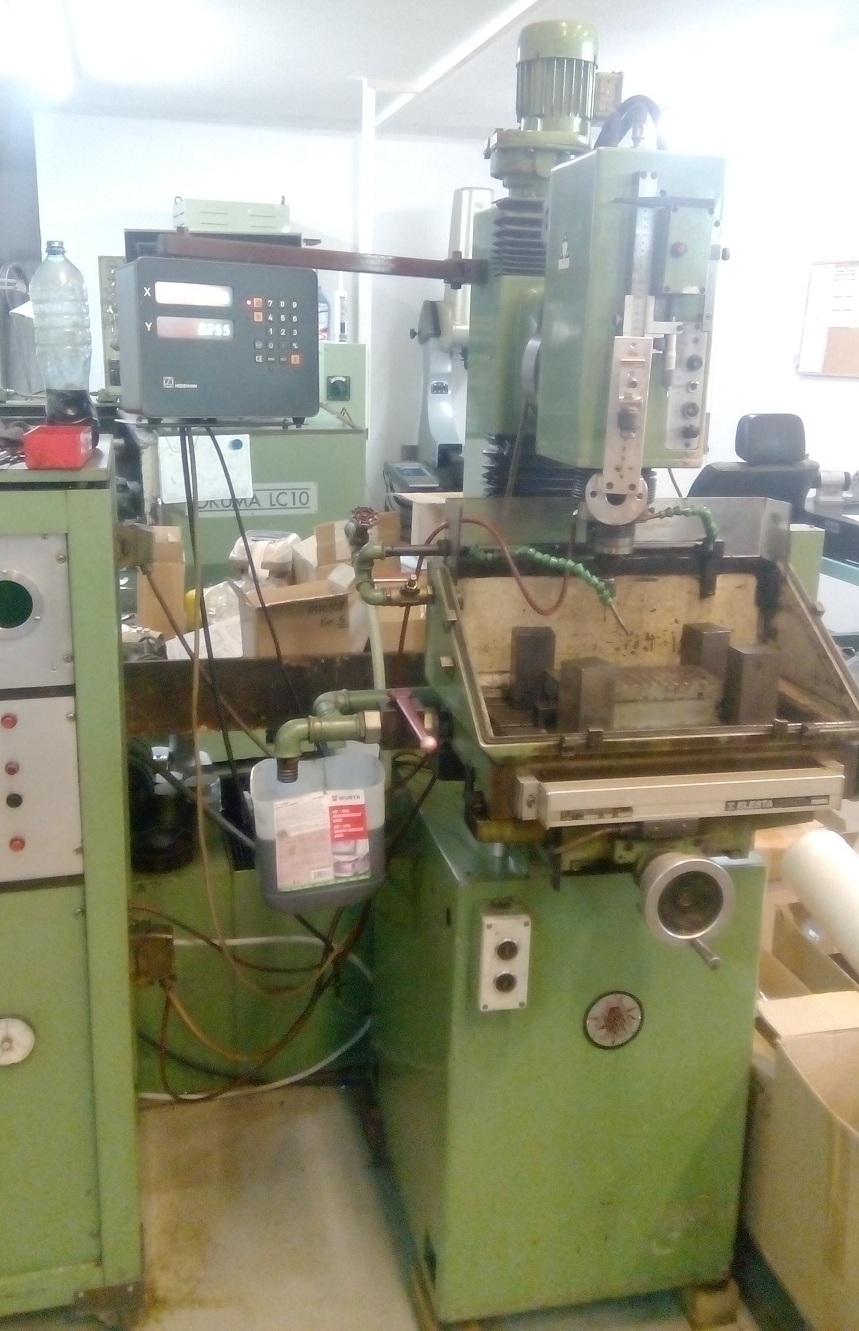

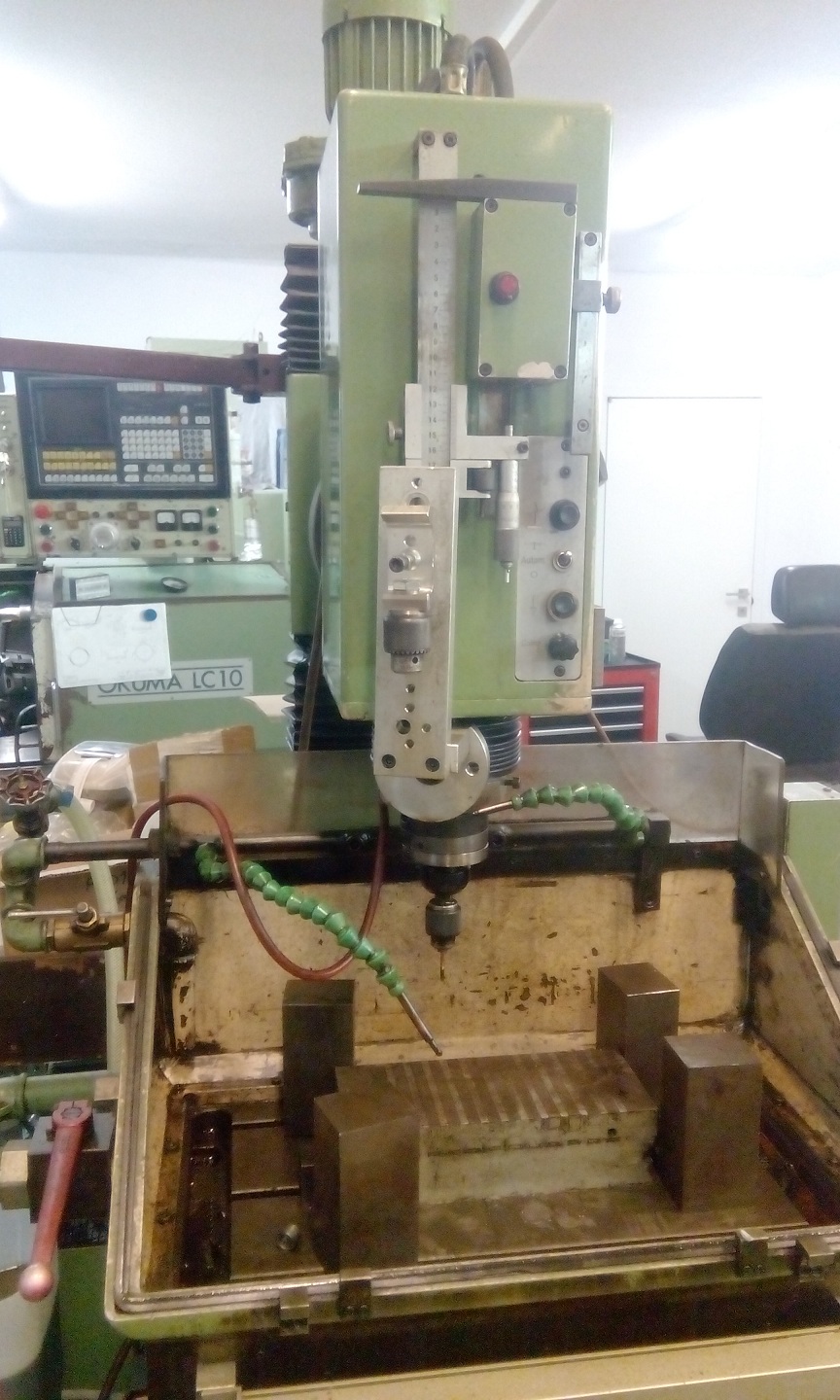

EROZIMAT

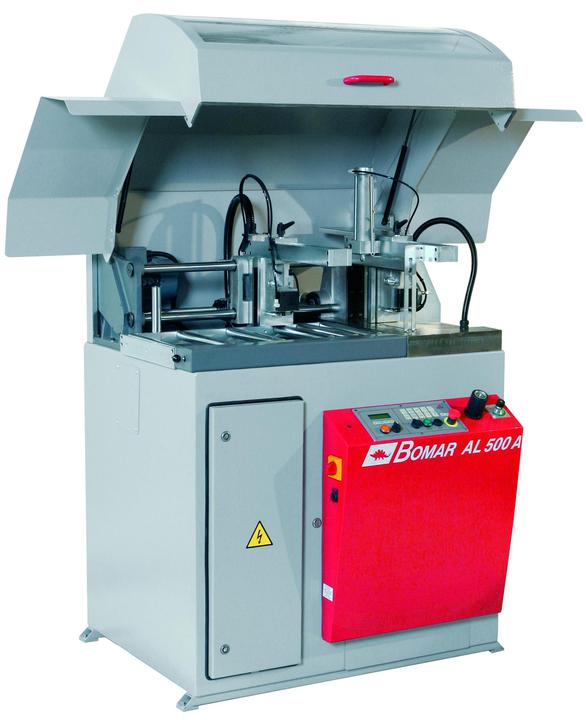

RAMSAUER AL 500 ANC

• Kreissägeautomat
• Vorschublänge beträgt 500mm Mehrfache
• Vorschublänge bis 9999,9mm

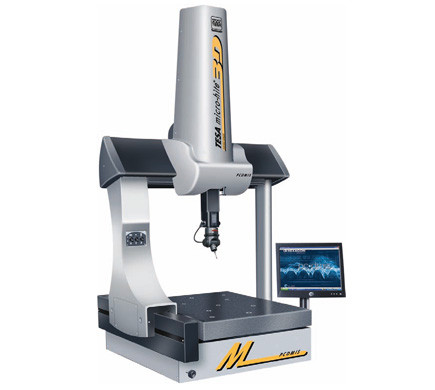

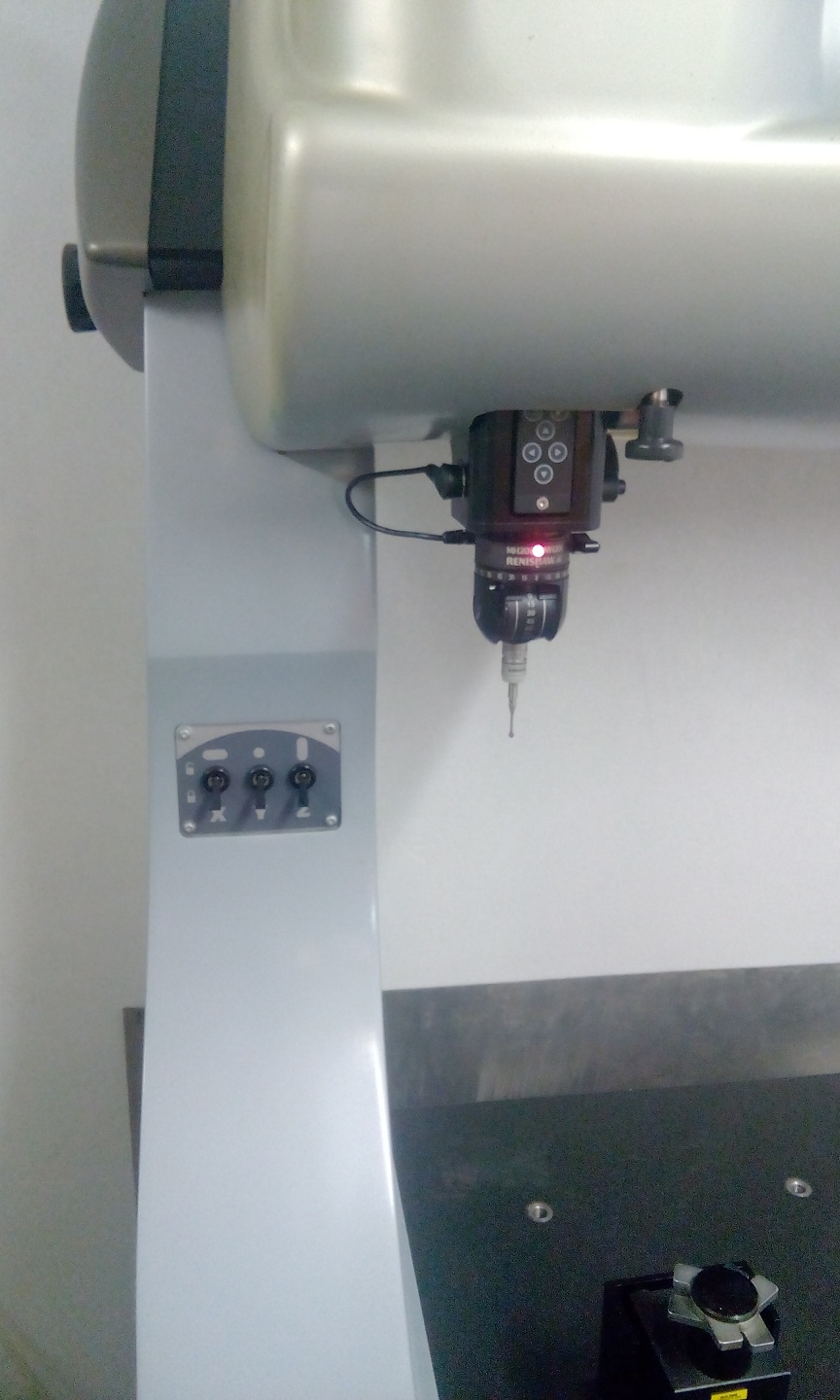

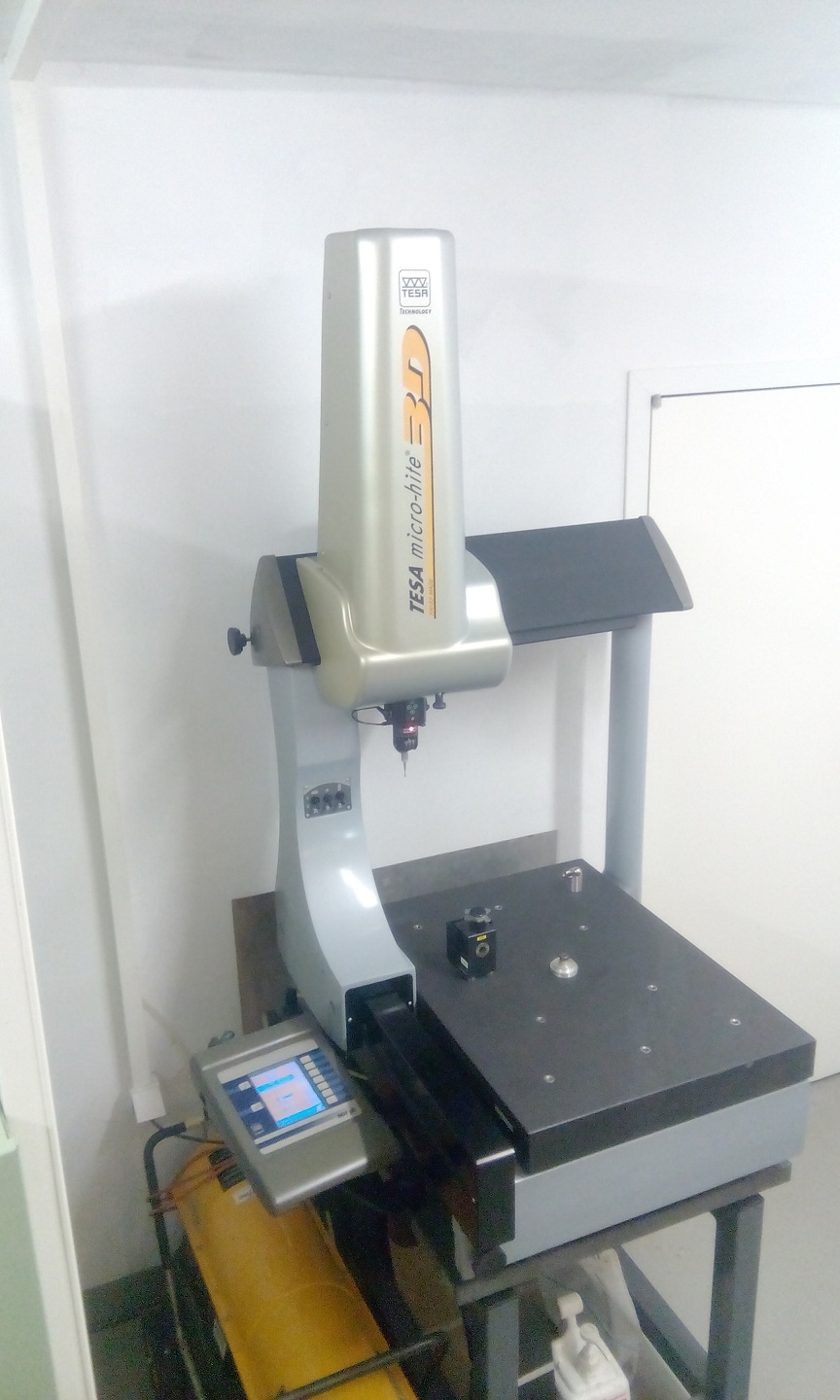

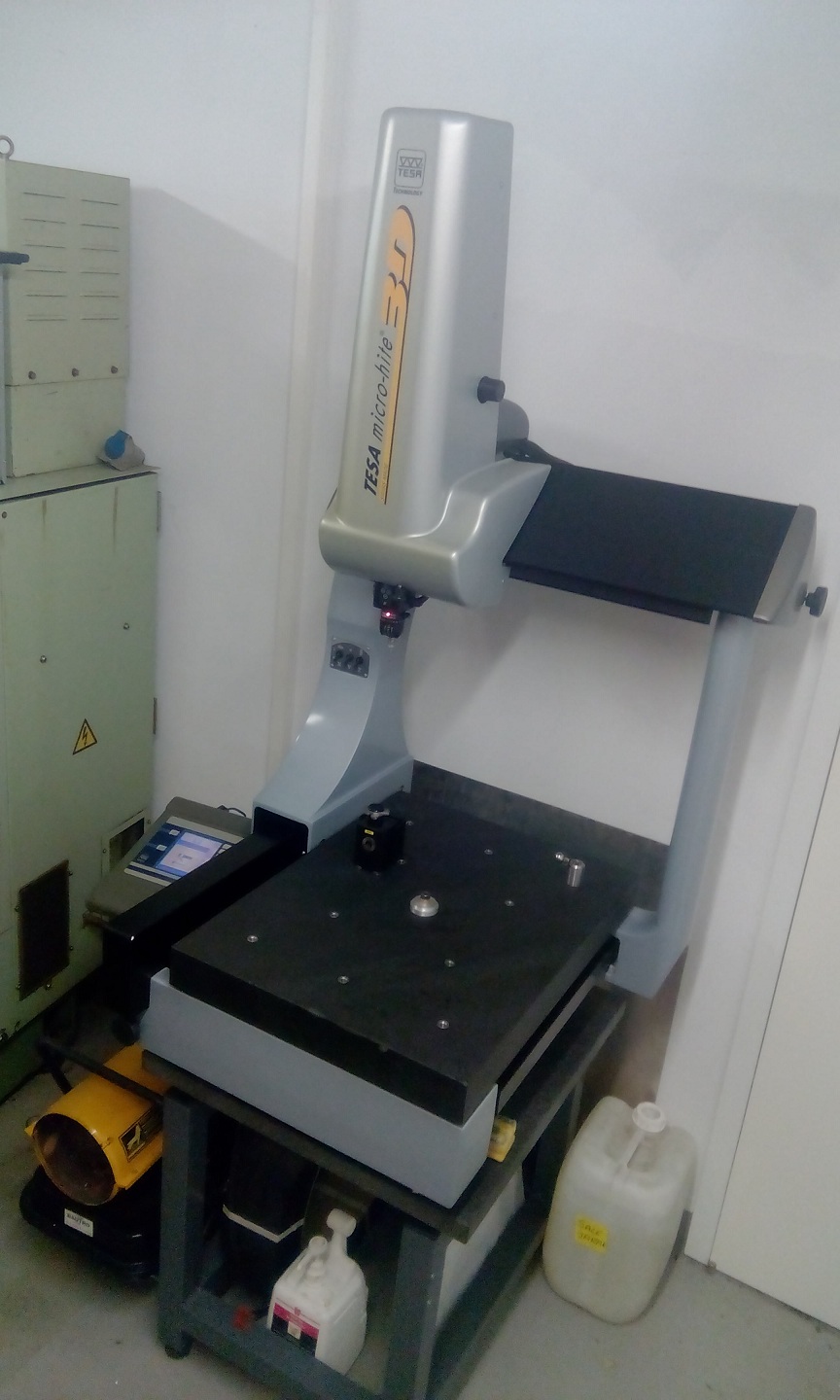

Tesa Micro-Hite 3D

• Messbereich
• hX - 460mm
• hY - 510mm
• hZ - 420mm
• Genauigkeit(qm)
• MPE= bis 3.0+L/250 really fast

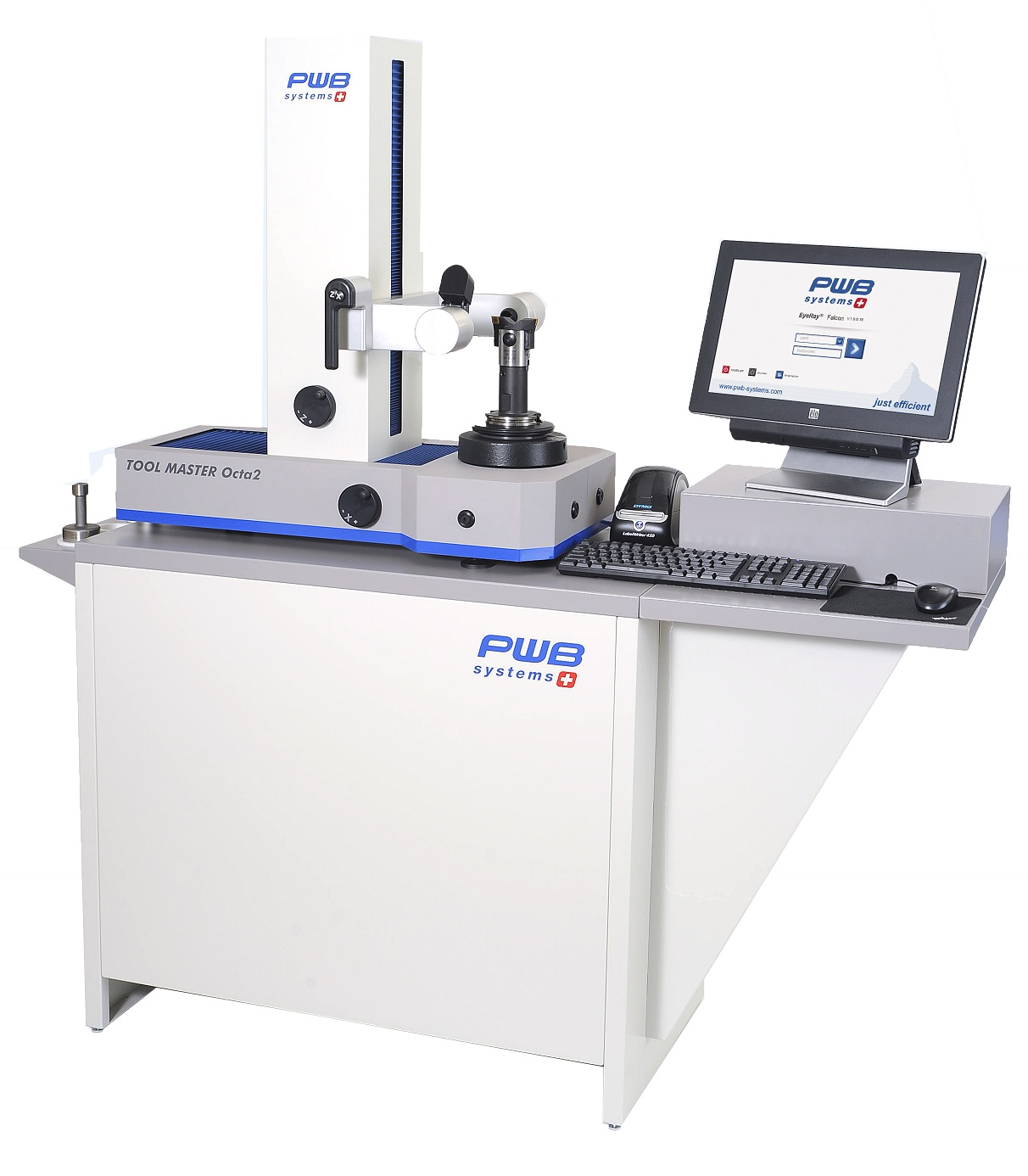

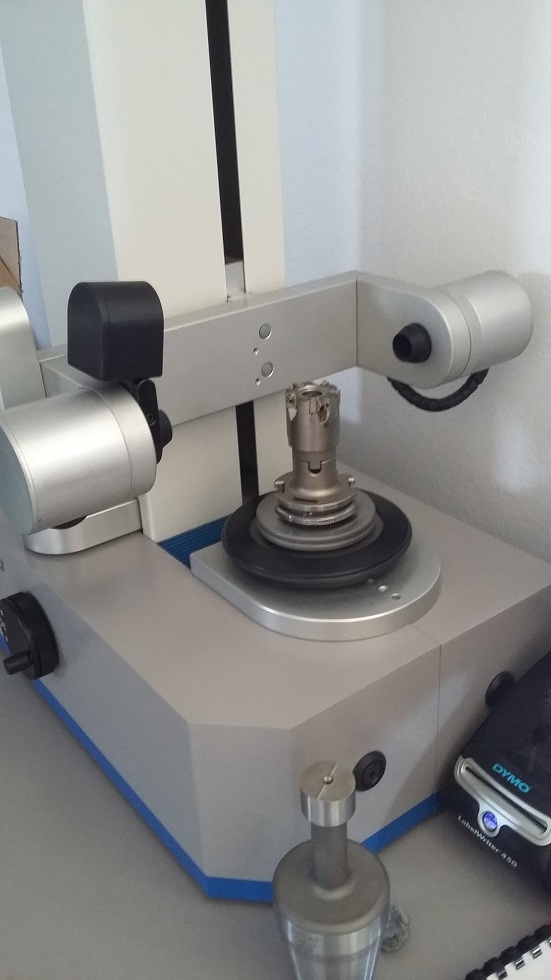

Tool Master Okta 2

• Werkzeugvoreinstellgerät

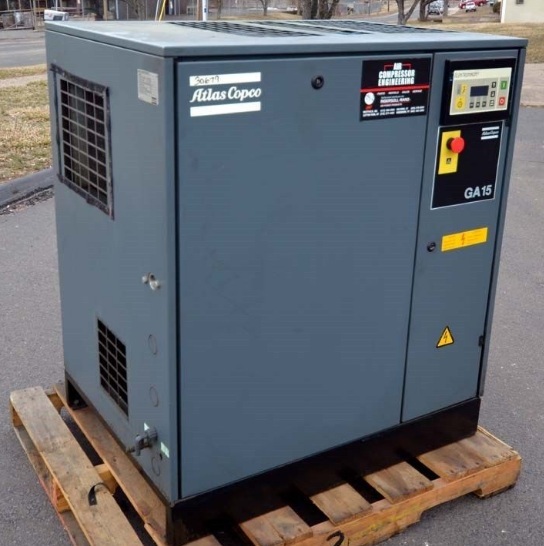

Atlas Corpco GA 15

• Schraubenkompressor
• 15 KW

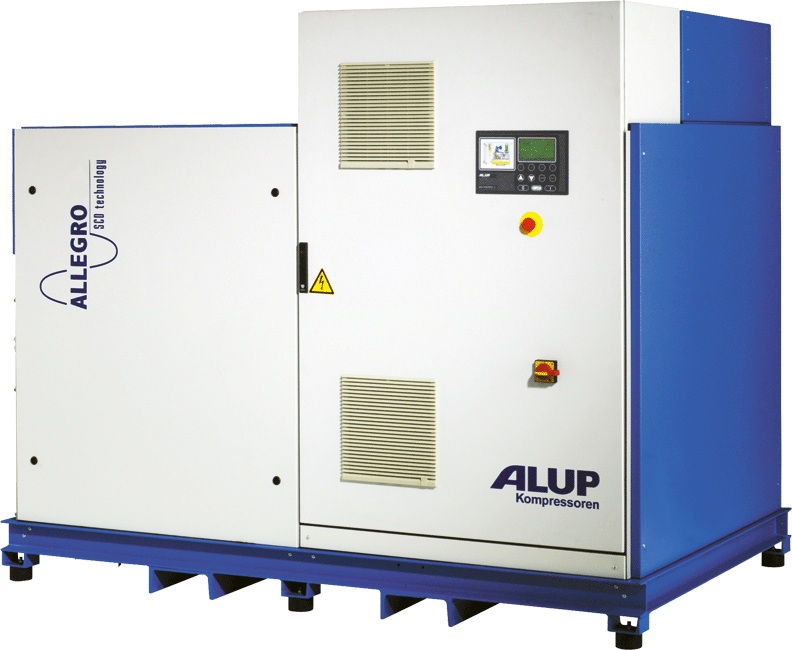

ALUP

• Schraubenkompressor
• 9 KW

WATER JET

• KMT 6200 BAR
• Radna povrsina - 2000 x 2000 x 300
• Mogucnost secenja svih vrsta materijala od 0.5mm do 300mm
• Godina proizvodnje: 2018
